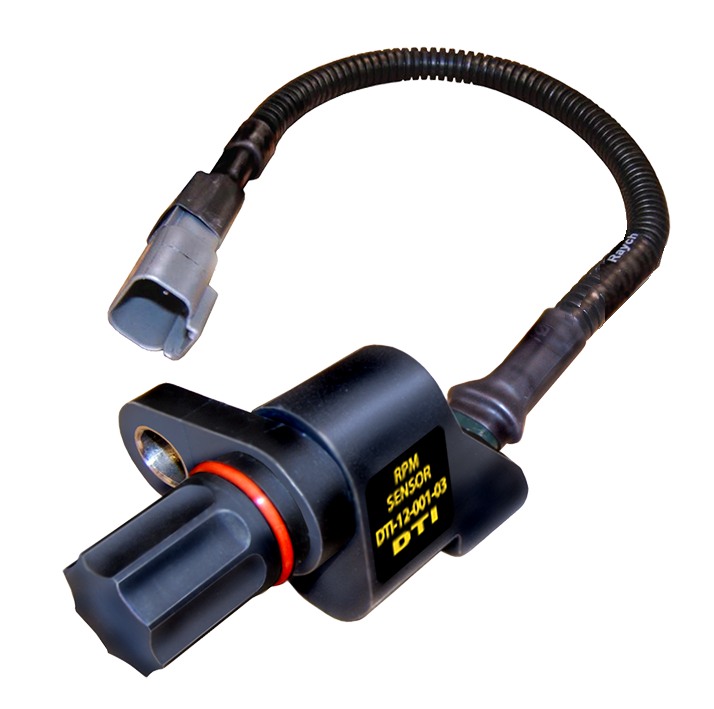

Intelligent RPM SENSOR

FEATURES:
•   Intelligent Sensor*
•   Accurate RPM Sensing and Monitoring.
•   Heavy Duty.
•   Industrial Grade.
•   Water Proof.
•   LED Power Indicator.
•   Data Output.

*Intelligent Sensor
Reads Output voltage that is proportional to RPM measured.
Limits the need for further signal processing such as PLC, industrial computers, smart relays, etc.

DTI RPM SENSOR SPECIFICATIONS
Sensor type: ………………………………………………………..Variable Reluctance
Sensing Distance: ………………………………………………..0-120Hz
Input Voltage: …………………………………………………….12 or 24 VDC
Current: ……………………………………………………………..10 mA
Output: ………………………………………………………………0-10 VDC
Accuracy: …………………………………………………………..0.3 Hz
Physical Dimensions: …………………………………………..3.4”l (+1′ cable) x 1.9”w x 1.7”h
Termination: ………………………………………………………..Deutsch (female connector)
Operating Temperature: ……………………………………….-40ºC to 85ºC
Storage Temperature: …………………………………………-65ºC to 150ºC
Operating Humidity: ……………………………………………..0-100%
Storage Humidity: ………………………………………………..0-100%
Deutsch Connector: ……………………………………………. Two Pin
