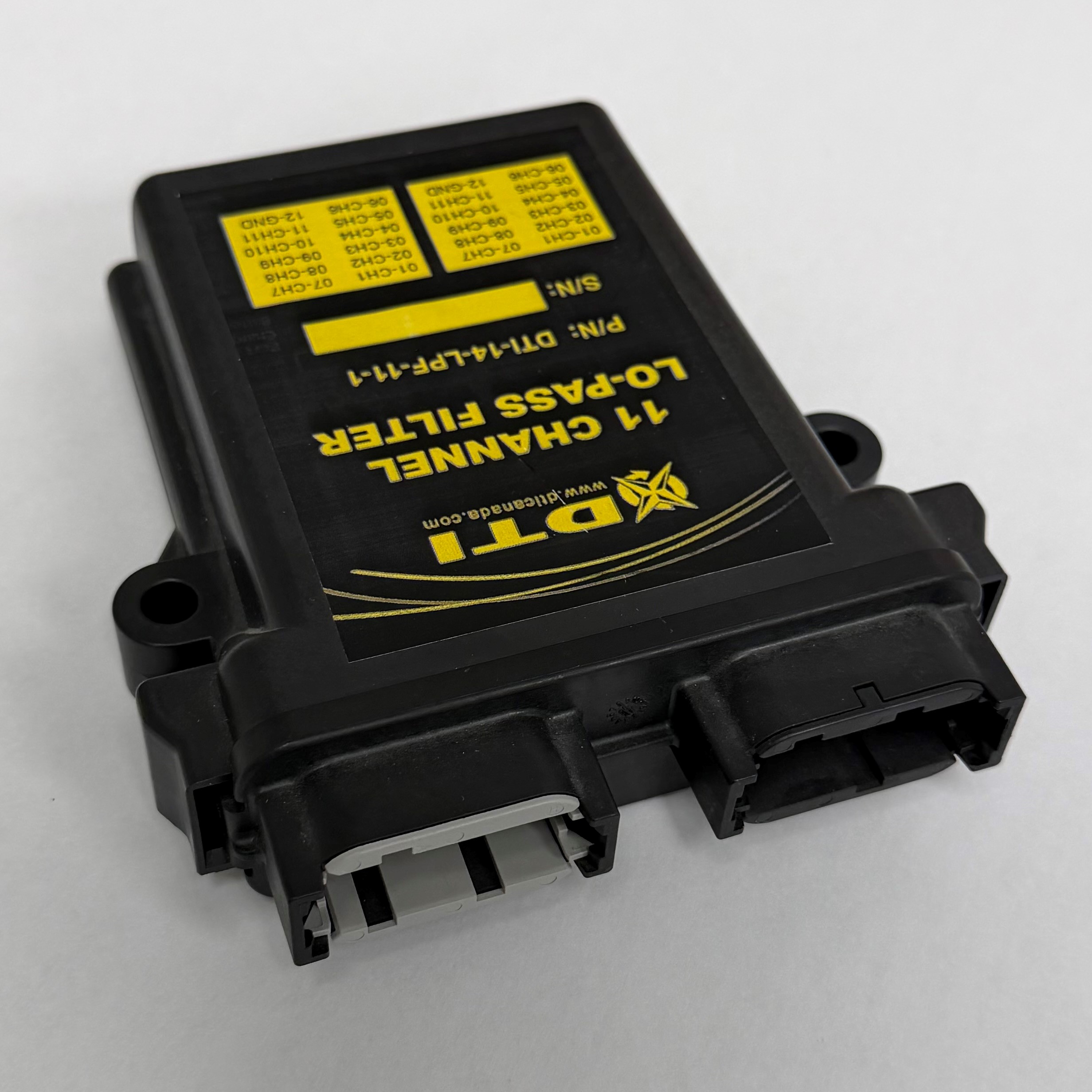

DTI 11-CHANNEL LOW PASS FILTER ARRAY

Low Pass Filter Array

The DTI 11- Channel Low Pass Filter Array provides general purpose filtering in phase lag insensitive applications, or for converting a variable Pulse With Modulated signal into a variable DC voltage for control purposes.

DTI 11-Channel Low Pass Filter Array is a, one-pole, passive RC filter array comprised of 11 low-pass filter elements to filter 11 individual analog channels referenced to a common ground return.

FEATURES:

• Input Voltage Range
The safe operating steady state voltage range on each channel is limited by the 0.25W power rating of the 1-KOhm input resistors. The input resistor’s power rating limits the allowable input voltage range to +15V dc.

• Operating Temperature
Operating Temperature Range -40°C to +85°C. Note: Frequency characteristics will vary slightly with temperature.

• Humidity Operating Level of 99% or less (non condensing)

• Filter Characteristic
A Bode Plot of a single filter element is shown below.
